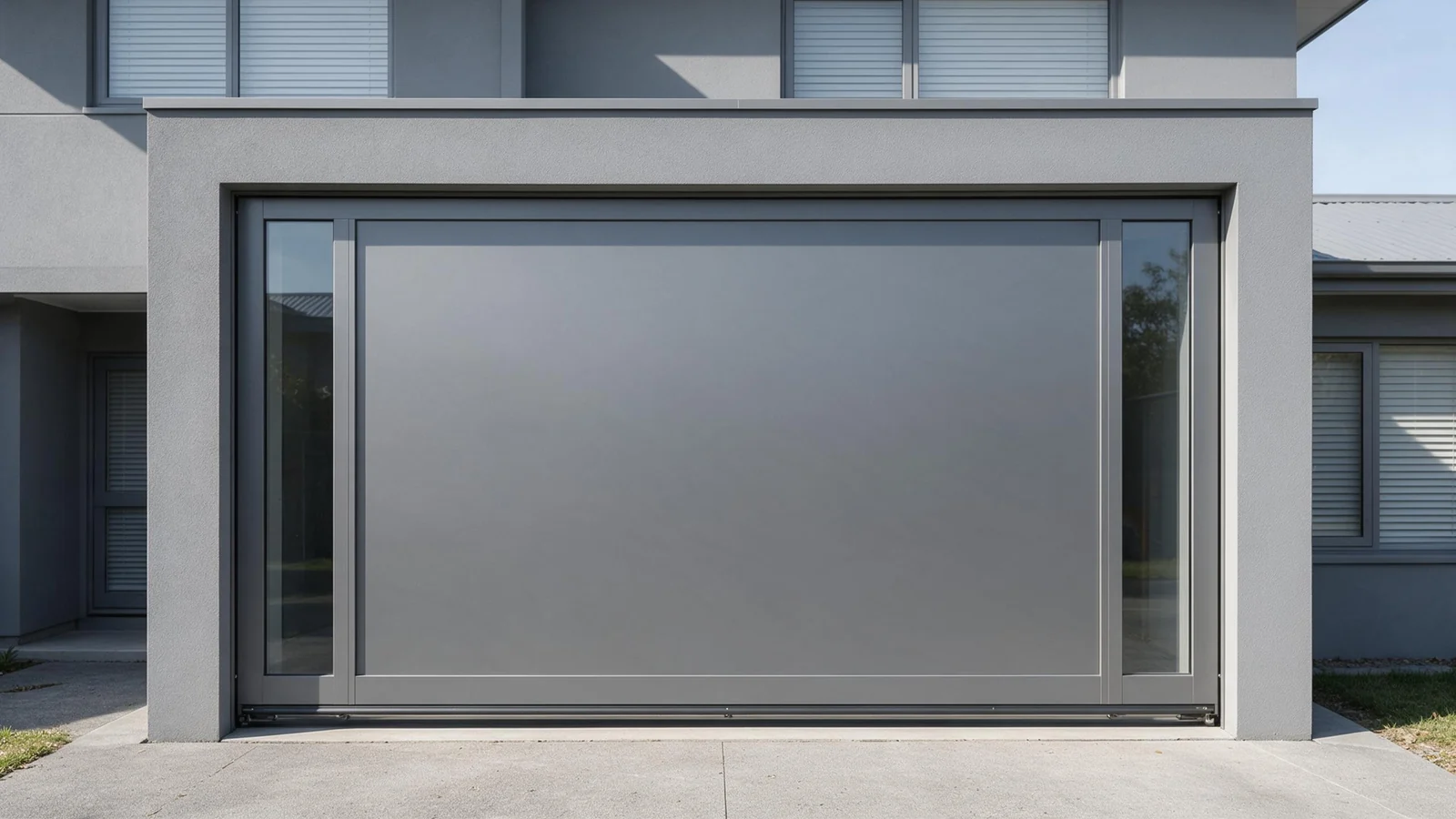

Garage Door With Windows on Side
Vertical side glazing, built into aluminum framed glass doors made to your opening.
What Buyers Mean by a Garage Door With Windows on Side
Ask ten builders what a garage door with windows on side means and you'll get three answers. One is a vertical stack of glass panels running down one edge of the door. Another is matching stacks on both sides, so the door reads symmetrical from the street. The third is a full-height glazed side section, where the frame carries glass from the bottom rail to the top rail with no interruption. All three are layouts, not separate products. WANJIA Hiseng builds them into the same three door types we make: framed glass, frameless mirrored, and aluminum sectional.
Side glazing behaves differently from the top-row window strip most people picture. A top strip throws daylight onto the floor a few feet inside the door. A side stack pulls light across the slab at eye level, which is why it shows up on garages that face a courtyard, a workshop bench, or a showroom floor. It also changes what neighbors see. If the door faces the street, frosted or tinted glass on the side panels does more for privacy than anything you can do to the top row.
None of this is stock. Every side-window layout we ship is drawn to your opening, and the glass, frame color and finish get specified together. That's the part worth slowing down on before you order.
How Side Glazing Is Built
Four things decide whether a side-window layout looks right and holds up.
Frame Carries the Load
On a framed glass door, the aluminum profiles run 2.5 mm and 6 mm thick. The vertical stile at the edge of the door is what carries a side stack, and the glass bead holds each panel in place. A full-height side section is a mullion-combined assembly, not one tall pane.
Glass You Can Specify
Side panels take frosted, tinted, Low-E, clear, coated, laminated or insulated glass, in blue, dark brown, green, grey, frosted or black mirrored. Frosted on the lower panels and clear above is a common split, and it's easy to draw.
Finish Matches the Facade
Nine aluminum colors on framed and sectional doors, 26 steel colors available. Powder coating, fluorocarbon coating, wood-grain transfer and electrophoresis are all on the table, and RAL colors can be matched. Pick the side window frame and the door frame together.
Opener System, Same as Any Door
A glazed door still needs the safety hardware. Remote control open, stop and close, auto light, obstacle auto-reverse, infrared photo-eye option, overload and overheat protection, and manual release when the power is out. WiFi remote is an option.
Side-Window Door Specifications
Values below describe the three door types that can carry side glazing. Anything not listed is set by your drawing.
| Door types with side glazing | Framed glass, frameless mirrored, aluminum sectional |
|---|---|
| Framed glass door profile | 2.5 mm and 6 mm aluminum |
| Aluminum sectional profile | 1.5 mm aluminum |
| Frameless mirrored panel | 5 mm single-layer black glass or 5 mm aluminum plate |
| Aluminum colors | 9 aluminum colors |
| Steel colors | 26 steel colors |
| Glass options | Low-E, clear, coated, laminated, insulated |
| Glass colors | Blue, dark brown, green, grey, frosted, black mirrored |
| Insulation filling (sectional) | Polyurethane or EPS |
| Surface finishes | Powder coating, fluorocarbon coating, wood-grain transfer, electrophoresis, RAL colors |
| Minimum order | 2 square meters |
| Lead time | 25-30 business days |
| Quote turnaround | Within 3 hours |
Glass build-up, frame color and hardware set depend on the configuration you choose, so confirm the final combination on the drawing before production.
Other Door Types to Compare
Side glazing is one layout. These pages cover the rest of the range.
Full View Garage Doors
Full view garage doors in framed aluminum and glass, floor to header.
View details
Frameless Glass Garage Door
Frameless glass garage door with mirrored panels and one-way reflective privacy.
View details
Aluminum Glass Garage Door
Aluminum glass garage door with insulated sectional panels and overhead folding.
View details
Black Glass Garage Door
Black glass garage door options for a darker, low-reflection facade.
View detailsSide Windows That Open, and What They Cost You
Can the side windows open? Sometimes, and it depends on which door type you pick. A framed glass door can be built with an operable section in the side stack, using the same hardware family we use on our window lines. The trade-off is real: an operable panel adds a hinge line and a lock point to a door that already lifts overhead, and the sealing detail at that hinge has to survive the same wind and rain as the rest of the door. On a sectional door, side glazing is fixed, because the panels fold up and an opening sash would foul the track. If ventilation is the goal, say so early and we'll draw the operable section where it doesn't fight the lift.
Wind load and balance are the other two things buyers underestimate. Glass is heavy, and a door with a full-height glazed side section puts that weight off-center. The spring and track layout has to be sized for the finished door, not the door you saw in a photo. This is why we ask for the rough opening, side clearance, headroom and spring space before quoting. If you're comparing suppliers, ask any of them for the same four measurements and see who asks first. The NFRC label is a useful check on the glass side too, since it rates energy performance across categories you can compare.
Questions buyers ask
Are garage doors with windows on side a good idea?
It depends on which way the door faces. Side glazing pulls daylight across the slab at eye level, which works well for a workshop, a showroom or a courtyard-facing garage. If the door faces the street, expect less privacy, and plan on frosted or tinted glass for the lower panels. The layout itself doesn't weaken the door, but the spring and track have to be sized for the extra glass weight.
What are doors with side windows called?
There's no single trade name. Suppliers call them side-window garage doors, vertical glazing layouts, or side-lite doors. In our range they're framed glass, frameless mirrored or aluminum sectional doors with a vertical side section. If you're ordering, describe the layout rather than the name: one side or both, full height or a stack, and how many panels.
Do they make garage doors with windows that open?
Yes, on framed glass doors. An operable section can be built into the side stack using the same hardware family as our window lines. Sectional doors are different, since the panels fold up overhead and an opening sash would foul the track. If you want ventilation, tell us at the drawing stage so the operable panel sits where it clears the lift.
What are windows in a garage door called?
The glazed panels in a door are usually called lites, and a narrow vertical one is a sidelite. A row across the top is a top-row window strip. The frame member between two glazed sections is a mullion, and on a full-height side section the assembly is mullion-combined rather than one tall pane. Those are the words to use when you send a drawing.
Send Us Your Opening
Tell us the rough opening and the side layout you want. We'll quote within 3 hours.
